Zhejiang Zhongdeng Electronics Technology CO,LTD laigz@zjzdkj.com.cn +86-573-83280296
تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Zhongdeng
رقم الموديل: زد-GR250GN
شروط الدفع والشحن
الحد الأدنى لكمية: للنقاش
الأسعار: to be discussed
وقت التسليم: 2-3 أسابيع
تكرار: |
النظم العالمية لسواتل الملاحة |
نطاق التشويش: |
50 كيلومتر |
قوة التشويش: |
250 واط |
وقت العمل: |
24 ساعة عمل متواصل |
مزود الطاقة: |
220VAC أو 24VDC (مثبت على السيارة) |
تكرار: |
النظم العالمية لسواتل الملاحة |
نطاق التشويش: |
50 كيلومتر |
قوة التشويش: |
250 واط |
وقت العمل: |
24 ساعة عمل متواصل |
مزود الطاقة: |
220VAC أو 24VDC (مثبت على السيارة) |
50km 10-band GNSS jammer system designed to interfere with drones using satellite navigation systems, forcing them to move away from their intended destinations.
This advanced GNSS jammer system targets all major satellite navigation signals. Utilizing sophisticated jamming technology, it generates high-efficiency digital jamming signals to disrupt satellite navigation, preventing unauthorized devices from obtaining GNSS location information.

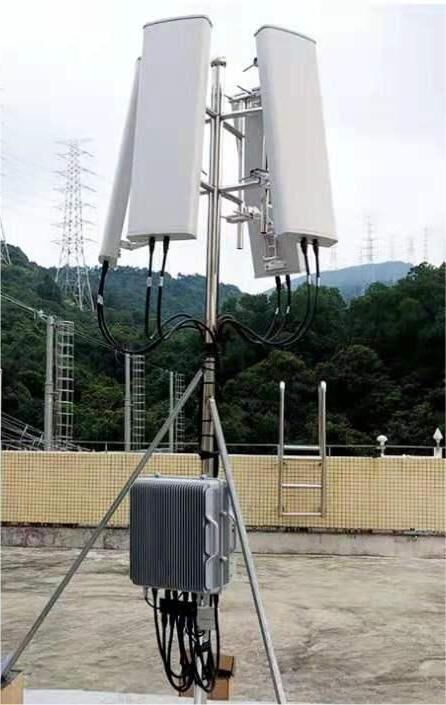

The system offers versatile deployment options including stationary installation and vehicle-mounted applications. Its compact design facilitates easy integration and deployment, available as standard indoor rack-mounted units or outdoor units housed in aluminum cases.
Primary Application: Designed for deployment in sensitive areas where drone intrusion via GNSS navigation signals must be prevented, specifically targeting threats such as the "poor man's cruise missile."
| Parameter | Specification |
|---|---|
| Jamming Bands | GPS L1, L2, L5; GLONASS L1, L2; GALILEO E1, E5a, E5b; BDS (multiple frequencies) |
| Total Jamming Power | 250W |
| Jamming Range | 50km |
| Antenna Gain | 12-15dBi |
| System Power Consumption | 1200W |
| Main Unit Dimensions | 52 × 53 × 47 cm |
| Main Unit Weight | 49kg |
| Power Supply | 220VAC or 24VDC (vehicle mounted) |
| Continuous Operation | 24 hours |
| Operating Temperature | -40℃ to +55℃ |
